Plastic Strapping Tools
Plastic Strapping Tools
Tools for Every Individual Need
In addition to the conventional systems for steel strapping, FROMM has developed equipment for polyester strapping. This new type of strapping is flexible, absorbing shock impact during shipping, loading and unloading more effectively than steel strapping.
The range is divided in pneumatic, manual and electric tools. Electric tools allow an independent working range, ideal for applications requesting not only flexible handling of the tool but also high tension of the strapping.
Battery Tools

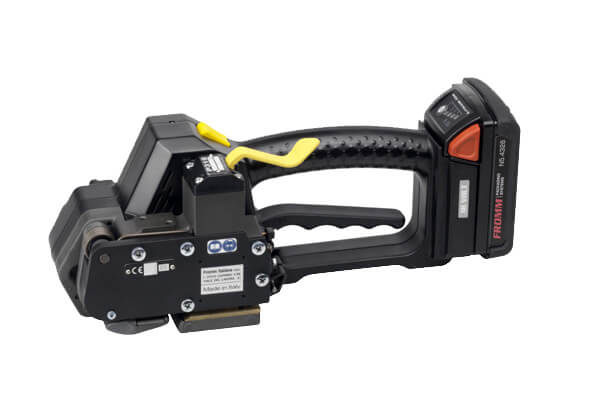

Model: P318
Strap qualities: Polyester (PET) and, Polypropylene (PP)
Strap dimensions: 8.0 – 13.0 x 0.35 – 0.80 mm, 1/3 – 1/2 x .015 – .031"
Strap tension: 150 – 800 N (adjustable)
Sealing type: Sealless
Power supply: Battery 18VDC / 1.5 Ah Li-Ion
Weight: 3.4 kg / 7.5 lbs

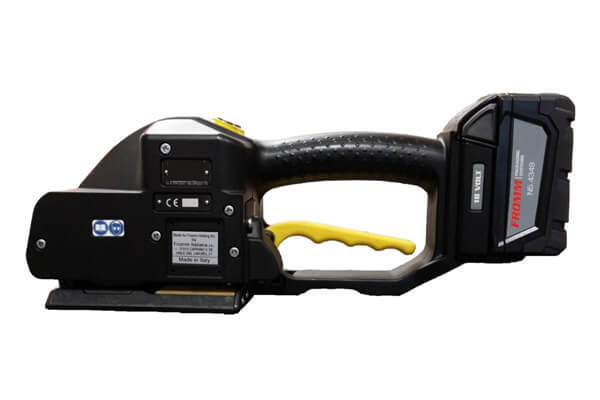

Model: P328
Strap qualities: Polyester (PET) and Polypropylene (PP) plain and embossed
Strap dimensions: width 10.0 – 16.0 mm / 3/8 – 5/8” thickness 0.40 – 1.05 mm / .016 – .041”
Weight incl. battery: 4.2 kg / 9.3 lbs
Tool size with battery: L351 x W1 34 x H1 43 mm / 13.8” x 5.3” x 5.6”
Type of seal: Friction weld sealing
Average seal strength: approx. 75% (dependent on strap quality)
Tension force: 250 – 2600 N / 56 – 585 lbs (adjustable)
Tension speed: 67 – 1 24 mm/s / 2.6 – 4.9 inch/s
Power supply: Battery Li-Ion 1 8VDC / 4.0 Ah

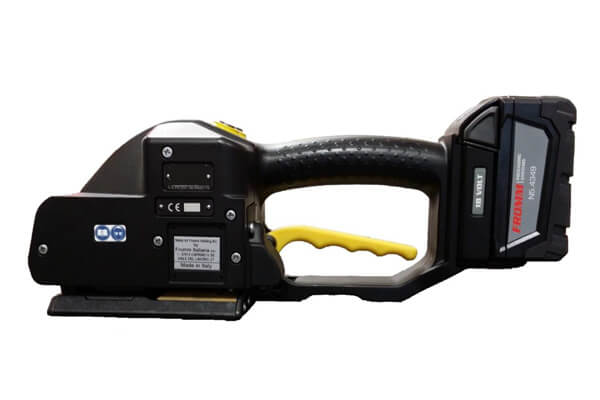

Model: P329
Strap qualities: Polyester (PET) and Polypropylene (PP) plain and embossed
Strap dimensions: width 1 6.0 – 1 9.0 mm / 5/8 – 3/4” thickness 0.65 – 1.35 mm / .026 – .053”
Weight incl. battery: 4.2 kg / 9.3 lbs
Tool size with battery: L351 x W1 34 x H1 43 mm / 13.8” x 5.3” x 5.6”
Type of seal: Friction weld sealing
Average seal strength: approx. 75% (dependent on strap quality)
Tension force: 500 – 4000 N / 1 12 – 900 lbs (adjustable)
Tension speed: 49 – 79 mm/s / 1 .9 – 3.1 inch/s
Power supply: Battery Li-Ion 18VDC / 4.0 Ah

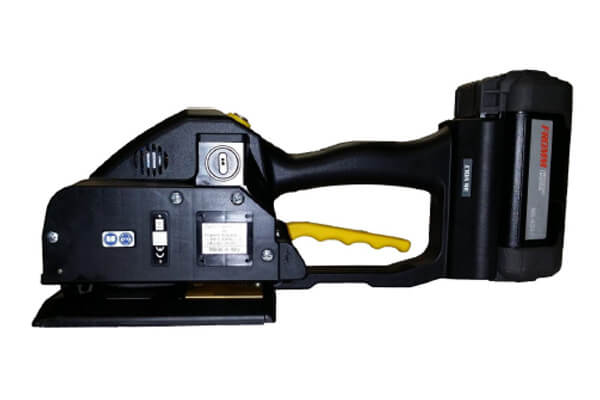

Model: P331
Strap qualities: Polyester (PET) plain and embossed
Strap dimensions: widths: 19.0 – 32.0 mm / 3/4 – 1 1/4”
Tensioning speed: 39 – 63 mm/s / 1.5 – 2.5 inch/s
Strap tension: 1200 – 7000 N / 270 – 1575 lbs (adjustable)
Power supply: Battery 36VDC / 2.5 or 4.0 Ah Li-Ion
Weight: 6.4 kg / 14.1 lbs
Pneumatic Tools

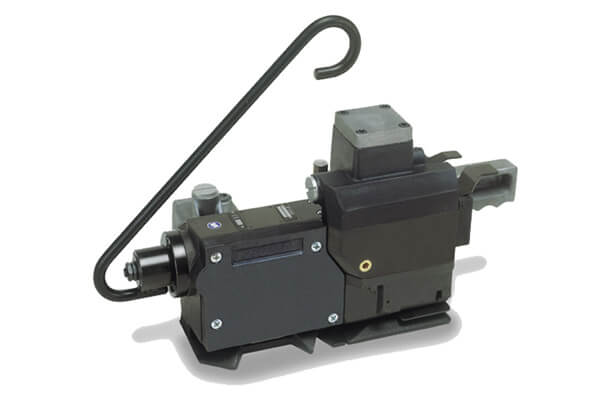

Model: P350
Strap qualities: Polyester (PET) and Polypropylene (PP)
Strap dimensions: 12.7 – 32.0 x 0.50 – 1.27 mm , 1/2 – 1 1/4 x .020 – .050"
Strap tension: 1300 – 2300 N (adjustable) or 2300 – 3800 N (adjustable)
Sealing type: Sealless
Weight: 16.5 kg / 36.4 lbs

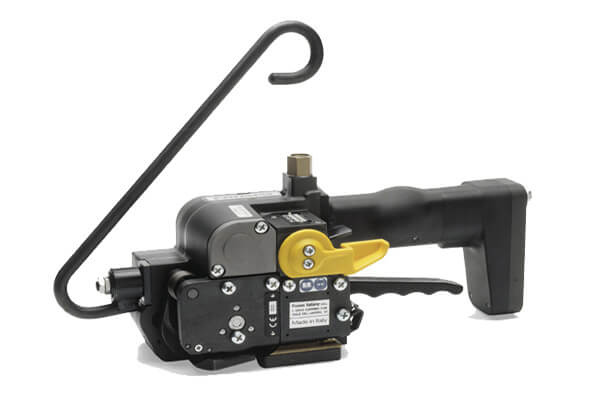

Model: P355
Strap qualities: Polyester (PET) and, Polypropylene (PP)
Strap dimensions: 10.0 – 16.0 x 0.40 – 1.05 mm , 3/8 – 5/8 x .016 – .041"
Strap tension: 400 – 2100 N (adjustable)
Sealing type: Sealless
Weight: 4.8 kg / 10.5 lbs

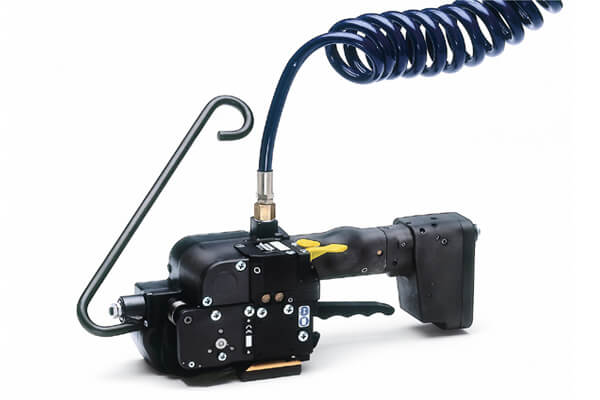

Model: P356
Strap qualities: Polyester (PET)
Strap dimensions: 16.0 – 19.0 x 0.40 – 1.35 mm , 5/8 – ¾ x .016 – .053"
Strap tension: 800 – 3700 N (adjustable)
Sealing type: Sealless
Weight: 5.5 kg / 11.9 lbs

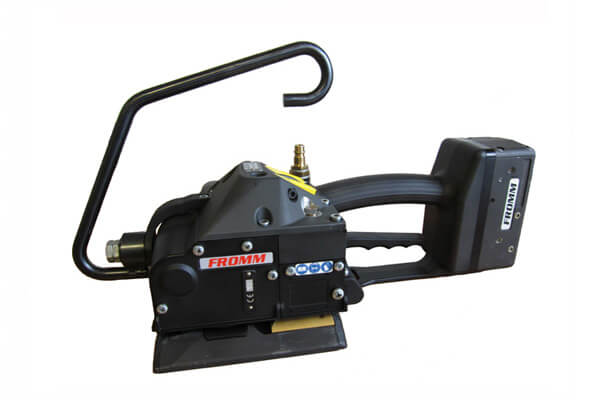

Model: P359
Strap qualities: Polyester (PET) and Polypropylene (PP)
Strap dimensions: 19.0 – 32.0 x 0.60 – 1.53 mm 3/4 – 1 1/4 x .023 – .060"
Strap tension: 2000 – 3500 N (adjustable) resp. 4000 – 7000 N (adjustable)
Sealing type: Sealless
Weight: 8.9 kg / 19.6 lbs

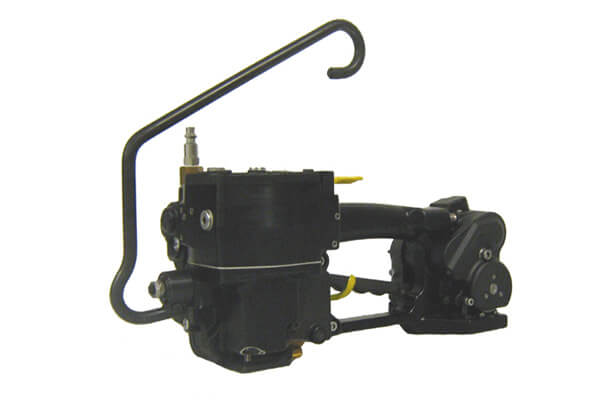

Model: P380
Strap qualities: Polyester (PET) and Polypropylene (PP)
Strap dimensions: 13.0 – 19.0 x 0.40 – 1.35 mm , ½ – ¾ x .016 – .053"
Strap tension: 600 – 2000 N (adjustable)
Sealing type: Sealless
Weight: 6.8 kg / 15 lbs
Manual Tools
Model: P403
Strap qualities: Polyester (PET) and Polypropylene (PP)
Strap dimensions: 11.0 – 13.0 x 0.40 – 0.90 mm , ½ x .016 – .035"
Sealing type: Metal Seals
Weight: 3.3 kg / 7.3 lbs

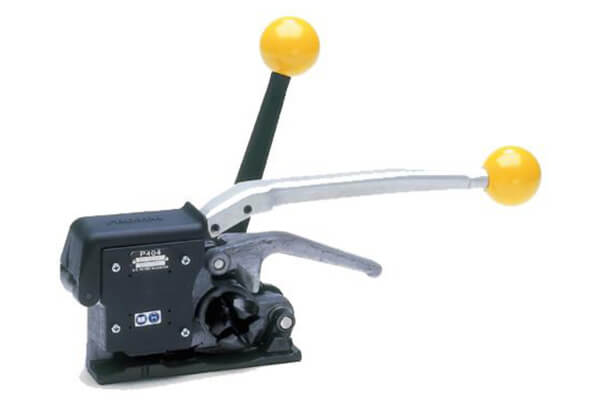

Model: P404
Strap qualities: Polyester (PET) and, Polypropylene (PP)
Strap dimensions: 15.0 – 16.0 x 0.50 – 0.90 mm , 5/8 x .020 – .035"
Sealing type: Metal Seals
Weight: 3.8 kg / 8.4 lbs
