Shrink Machines
Shrink Machines
EKL Series

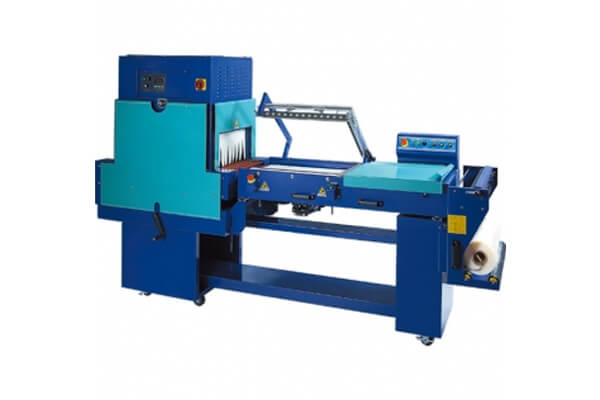

Model: EKL-455MT
POWER SUPPLY 220V., 60HZ., 3-PHASE ; 400V., 50HZ., 3-PHASE
MAX. CONSUMPTION POWER 9Kw
SEALING DIMENSION 400mm (W) X 550mm (D)
TUNNEL INLET DIMENSION 400mm (W) X 200mm (H)
MAX. FILM ROLL DIMENSION 600mm X Ø300mm
WORKING PLATE HEIGHT 900mm
MACHINE DIMENSION 2570mm (L) X 870mm (W) 1600mm (H)
MAX. PACKING HEIGHT 150mm
MACHINE WEIGHT 400Kg

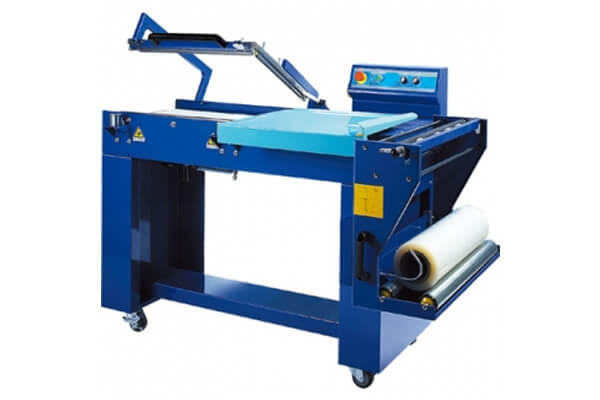

Model: EKL-455PT
POWER SUPPLY 220V., 60HZ., 3-PHASE ; 400V., 50HZ., 3-PHASE
MAX. CONSUMPTION POWER 9Kw
SEALING DIMENSION 400mm (W) X 550mm (D)
TUNNEL INLET DIMENSION 400mm (W) X 200mm (H)
MAX. FILM ROLL DIMENSION 600mm X Ø300mm
WORKING PLATE HEIGHT 900mm
MACHINE DIMENSION 2570mm (L) X 870mm (W) 1600mm (H)
MAX. PACKING HEIGHT 150mm
MACHINE WEIGHT 400Kg

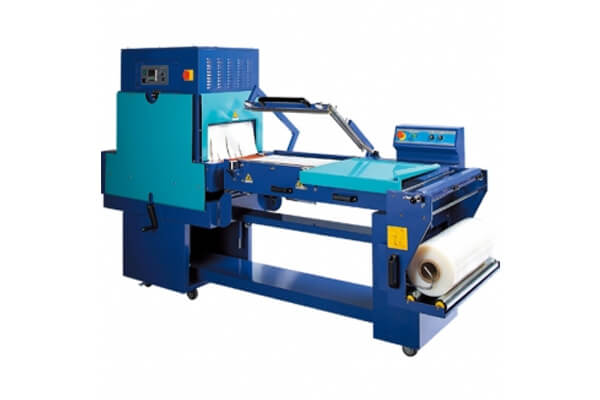

Model: EKL-455M
POWER SUPPLY 110V/220V, 50HZ/60HZ, 1-PHASE
MAX. POWER CONSUMPTION 1Kw
SEALING DIMENSION 400mm (W) X 550mm (D)
MAX. FILM ROLL DIMENSION 600mm X Ø300mm
EKT Series

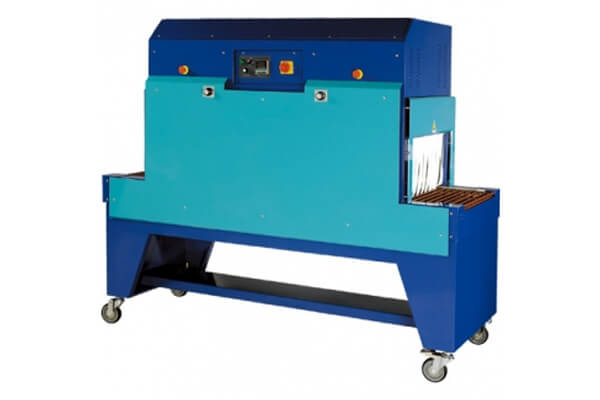

Model: EKT-525
POWER SUPPLY 220V., 60HZ., 3-PHASE ; 400V., 50HZ., 3-PHASE
MAX. CONSUMPTION POWER 9Kw
TUNNEL INLET DIMENSION 500mm (W) X 250mm (H)
MACHINE DIMENSION 1590mm (L) X 790mm (W) 1700mm (H)
MACHINE WEIGHT 305Kg
EKH Series

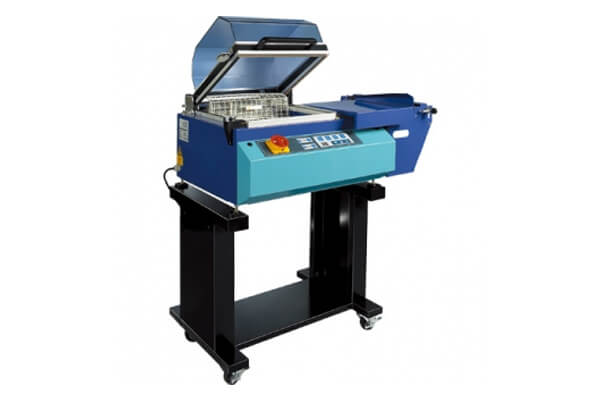

Model: EKH-238
POWER SUPPLY 110/220/230/240V., 50/60HZ., 1-PHASE
MAX. CONSUMPTION POWER 3.2Kw
EFFECTIVE POWER CONSUME 1.3-1.9Kw
SEALING DIMENSION 280mm (D) X 380mm (L)
MAX. HEIGHT OF PACKAGE 120mm
MACHINE DIMENSION 1020mm (L) X 620mm (W) X 550mm (H)
MAX. DIMENSION OF FILM 360mm X Ø250mm

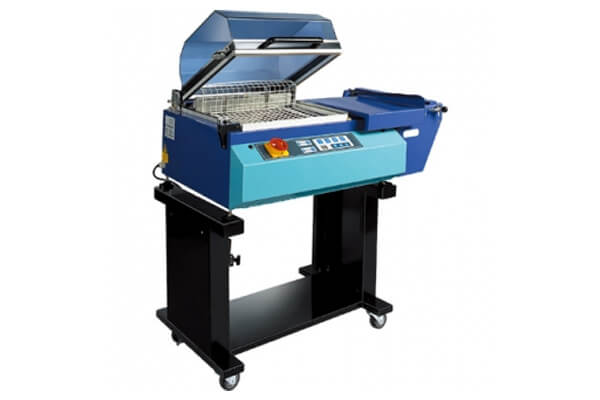

Model: EKH-346
POWER SUPPLY 110/220/230/240V., 50/60HZ., 1-PHASE
MAX. CONSUMPTION POWER 3.2Kw
EFFECTIVE POWER CONSUME 1.3-1.9Kw
SEALING DIMENSION 320mm (D) X 460mm (L)
MAX. HEIGHT OF PACKAGE 120mm
MACHINE DIMENSION 1120mm (L) X 660mm (w) X 550mm (H)
MAX. DIMENSION OF FILM 400mm X Ø250mm.

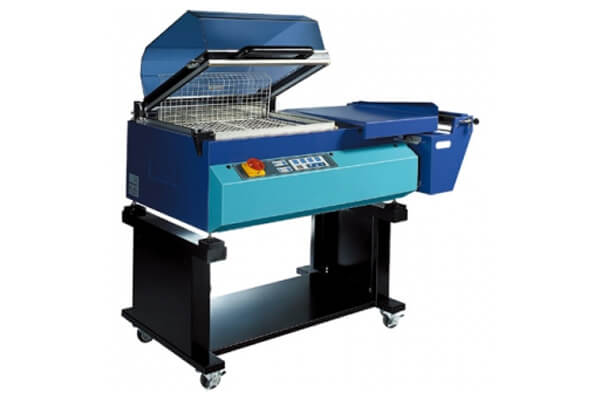

Model: EKH-455
POWER SUPPLY 110/220/230/240V., 50/60HZ., 1-PHASE
MAX. CONSUMPTION POWER 3.77Kw
EFFECTIVE POWER CONSUME 1.6-2.3Kw
SEALING DIMENSION 420mm (D) X 550mm (L)
MAX. HEIGHT OF PACKAGE 250mm
MACHINE DIMENSION 1320mm(L) X 820mm (W) X 645mm (H)
MAX. DIMENSION OF FILM 600mm X Ø250mm.

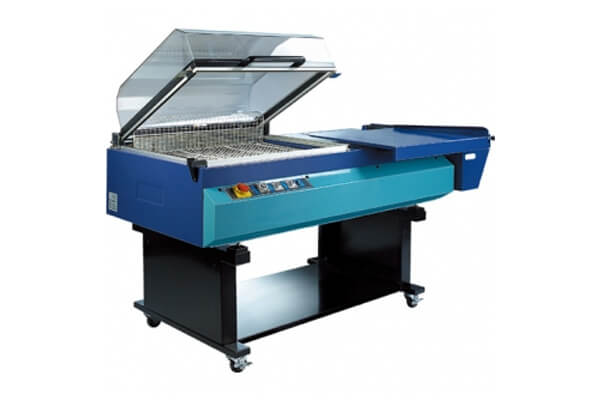

Model: EKH-680
POWER SUPPLY 220/380/400V., 50/60HZ., 3-PHASE
MAX. CONSUMPTION POWER 5.3Kw
EFFECTIVE POWER CONSUME 2.3-3.4Kw
SEALING DIMENSION 620mm (D) X 800mm (L)
MAX. HEIGHT OF PACKAGE 250mm
MACHINE DIMENSION 1575mm (L) X 1020mm (W) X 645mm (H)
MAX. DIMENSION OF FILM 800mm XØ250mm.
