Anchorages System

Vertical Anchorage Linesystem On Rigid Aluminium Rail

• Conforming to the Norm EN 353-1:2002 this vertical Fall Arrest system is an integrated solution to arrest the fall of a user who has to constantly climb up & down a ladder.
• The Vertical Anchorage Line is made of Stainless Steel wire rope & is maintained in the rigid position by use of 2 mounting brackets-one at the top & one at the bottom.
• A Stainless Steel Rope Grab moves up & down the anchorage line accompanying the user who is connected to it with the help of a small shock absorbing lanyard.
• To maintain the rigidity & high tension in the anchorage line, a screw type mechanical tensioner is provided at the end of the anchorage line at the bottom, connecting it to the lower mounting bracket.

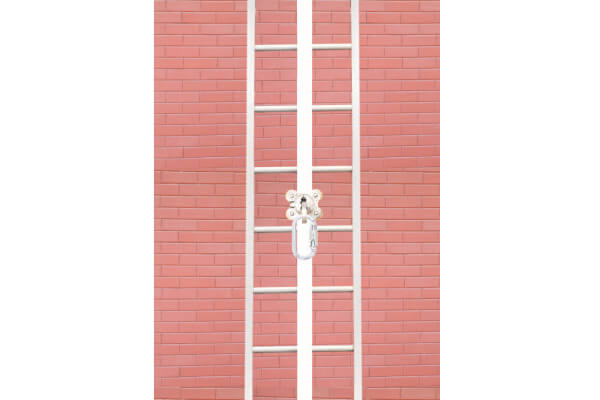

Vertical Anchorage Linesystem On Rigid Aluminium Rail

• This Vertical fall Arrest Anchorage system (Conforming to EN 353-1:2002) is an integrated Fall Arrest solution made of a Vertical Aluminium Alloy Guide Rail over which glides a Guided-Type Fall Arrest Trolley.
• The line is constructed by attaching the Aluminium rail Intermediates of length 3 mtrs. in series using Junction to connect them to each other, and Rung Clamps to affix them to the ladder rungs. The trolley moves up and down on the line accompanying the user who is connected to it with an Autolocking Steel Karabiner.
• In the event of a fall, the trolley immediately locks over the Rail, thus arresting the fall. Also, while not in use, the Uni-directional locking system of the Trolley prevents it from sliding down on its own.

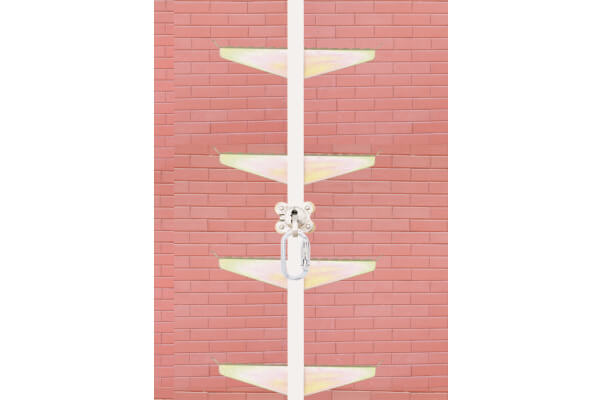

Vertical Anchorage Linesystem On Rigid Aluminium Rail

• This is a complete Fall Protection Ladder System which consists of Galvanized Steel Ladder Rungs over which is fixed the Vertical Anchorage Rail made of Aluminium Alloy. This system is an ideal choice for use where there are no pre-fabricated ladders or climbing structures available for climbing and can be fitted over various structures using different types of fasteners.
• The system conforms to EN 353-1:2002.
• The Rungs of the Ladder, made of Galvanized Steel, are fitted at a suitable distance from the underlying structure/ profile to allow enough foot space. The rungs also have a grooved surface that allows a slip-free grip while climbing.

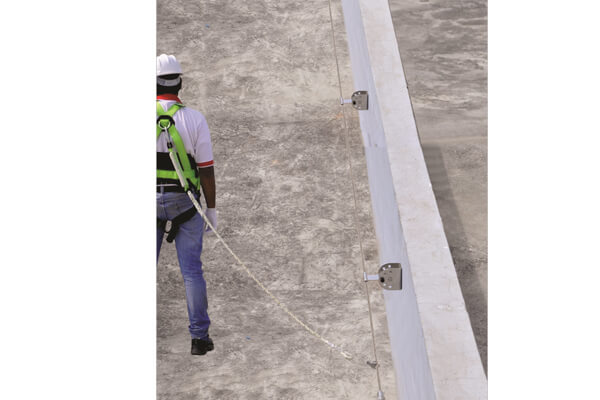

Vertical Anchorage Linesystem On Rigid Cable Line

• Horizon PN 4000 provides permanent anchorage to a user who has to constantly move along a horizontal line.
• It comprises of a Stainless Steel Wire Rope (SS 316) of 8 mm dia running all along the horizontal track, and is installed at the ends using special Universal Extremity Plates. The Intermediate brackets hold the wire in position all along the length of the wire, and are installed at intervals of every 10m. The line is maintained in tension with the help of Tensioner at one end, while the other end has a swageless termination on to the Universal Extremity plate.

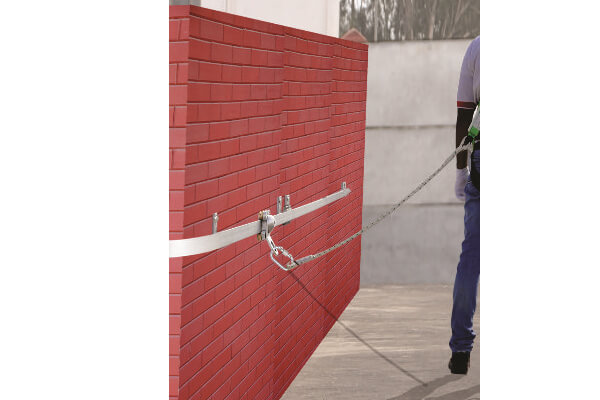

Vertical Anchorage Linesystem On Rigid Aluminium Rail

• This Anchorage Rail system complies with EN 795 and is designed to provide safe anchorage for horizontal movement while working at height. The worker wears a Full Body Harness and uses a Lanyard (or other connector compliant with EN 354/EN 355) to connect to the eye of the Trolley, which glides along the Aluminium Horizontal Rail. For overhead applications a Self retractable fall arrester can be used to provide the most effective means of fall protection.
• The Aluminium Anchorage Rail can be fitted on to floors, Wall and on Ceilings using special mounting brackets. The Wall-mounting brackets can be flushed along the surface of the wall; alternately special mounting brackets which allow a recess between the rail and the wall may be used so as not to interrupt underlying structures like pipes and wires.

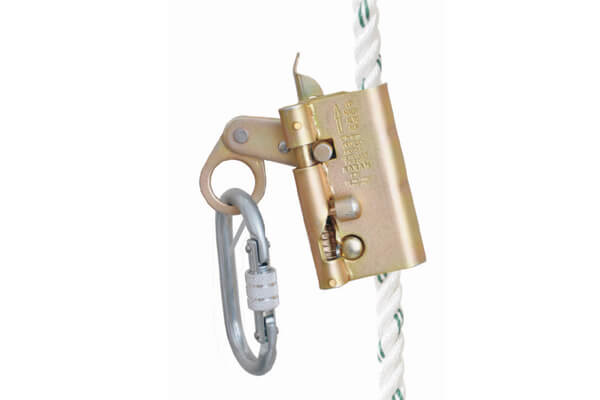

Rope Grab Fall Arrester

The rope grab moves freely on the polyamide twisted rope anchorage line (14 mm-16 mm) attached at its eye with the user, while he moves up & down. The rope grab immediately ‘Grabs’ on to the anchorage line in the event of a fall, hence arresting the fall.

Twisted Rope Anchorage Line

Made of 3-Stand polyamide twisted rope of dia 14 mm One side loop; other side end stop knot (Also Available with Both Side Loops)

Length :-

• 10m Ref. Anchor PN 910
• 20m Ref. Anchor PN 920
• 30m Ref. Anchor PN 930
• 40m Ref. Anchor PN 940
• 50m Ref. Anchor PN 950
• 100m Ref. Anchor PN 9100
• 150m Ref. Anchor PN 9150
• 200m Ref. Anchor PN 9200

Longer lengths are also available on request. Available with blue abrasion resistant sleeve of length 1.0 mtr.

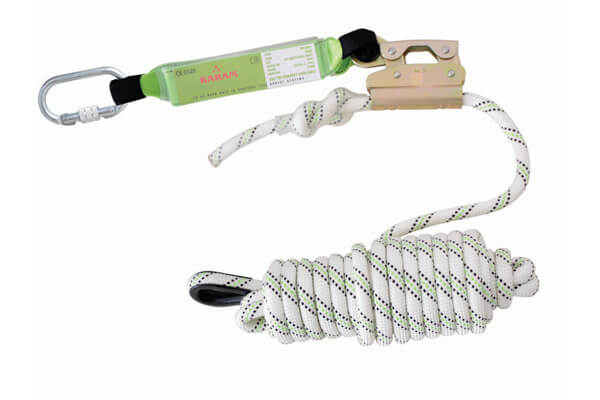

Guided Type Fall Arester On Flexible Anchorage Line

• This Fall Arrester works on 12 mm diaKernmantle polyamide.rope anchorage line incorporated permanently on theanchorage line, and comes with an energy absorbing element.
• The Anchorage line has one side connecter PN 112 and the other side a knot.
• The Anchorage line is available in lengths of 5m to 100m.
• Conforms to EN 353-2:2002.

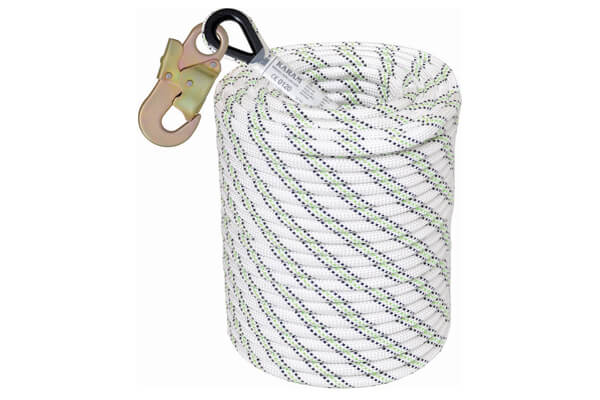

Kernmantle Rope Anchorage Line

• Made of polyamide kernmantle rope of dia 12 mm
• One side loop; other side end stop knot (Also Available with Both Side Loops)

Length :-

• 50m Ref. Anchor PN 950 (K)
• 40m Ref. Anchor PN 940 (K)
• 30m Ref. Anchor PN 930 (K)
• 20m Ref. Anchor PN 920 (K)
• 10m Ref. Anchor PN 910 (K)
• Longer lengths are also available on request.
• Available with blue abrasion resistant sleeve of length 1.0 mtr.

Longer lengths are also available on request. Available with blue abrasion resistant sleeve of length 1.0 mtr.
