Confined Space Entry

A particularly challenging area of activity is when the worker is required to move into confined spaces. Not only is it required that descent into such a space is made smooth and safe, but incase the depth into such areas is large, it becomes almost equirvalent to working at a height. Hence, to protect the worker from falling into deep and narrow confinement also becomes the focus of concern.

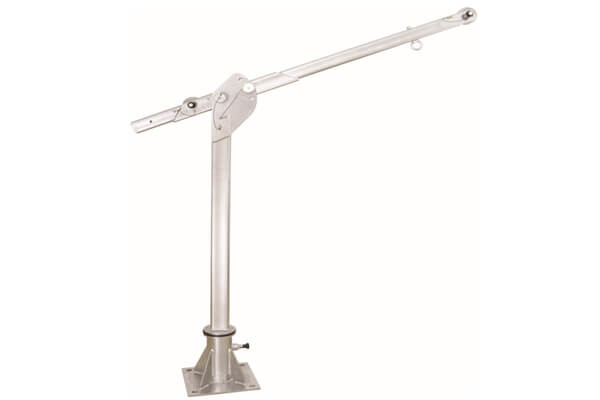

Cantilever K-Pod

KARAM introduces the new K-Pod which provides a safe and sure system for easy access to confined spaces. The K-Pod is an ideal choice to provide overhead anchorage which can be mounted on different bases and it conforms to EN 795 Class B.
The K-Pod is made of highly corrosion resistant Stainless Steel, and can swivel a complete 360 degrees on its mounted base, hence providing a versatile reach and access.
The unique feature is that the height of the Cantilever arm of the K-Pod is adjustable at 3 defined points, with upper height adjustment of 2.3m, middle arm adjustment of 1.9m, and lowered arm adjustment at 1.5m. This enables the use of the K-Pod even in those areas where the roof height is small. The K-Pod can be easily mounted on the floor as well as on the wall through special floor and wall mounting brackets which are made available as per need. The K-Pod can also be mounted on the floor of heavy vehicles, hence making it extremely versatile in use.
KARAM Winch PN 801 can also be easily mounted on to the K-Pod with the help of Stainless Steel fasteners.

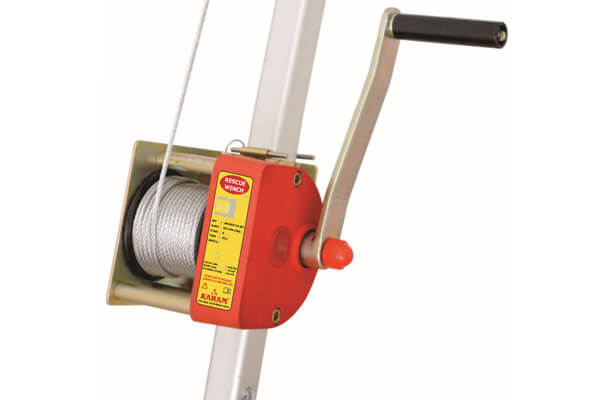

Winch

To be used for raising or lowering of personnel or material into confined spaces.
Equipped with bolting fixture for robust fitting on to the tripod PN 800.
Lifting Load Capacity : 135 Kgs.
Length: 20.0 m.
Conforms to EN 1496:2006 Class A.
To be used with a Retractable Fall Arrester when deployed for raising or lowering a person.
Can also be fitted to KARAM K-Pod PN 900.

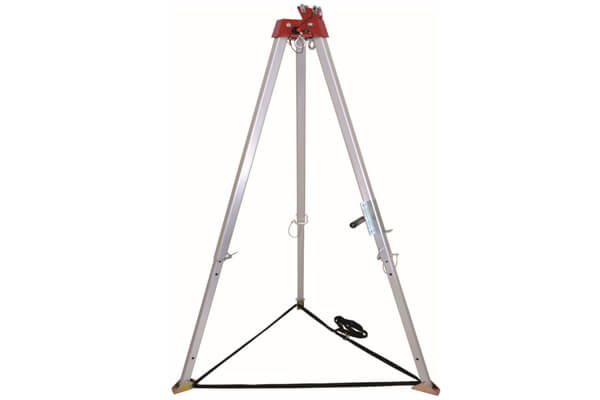

Tripod

For access in Confined Spaces. • With two mounted pulleys at the head of the Tripod in the prolongation of the main leg for passing a cable.
Having two auxiliary eye bolts as anchorage points.
Aluminum Alloy cast head, fully adjustable Aluminium telescopic legs.
Steel support-shoes provided with rubber sole to increase friction and impart more stability.
Strength of anchorage point greater than 10 kN.
Every Tripod is provided with inbuilt fixture for attaching our winch PN 801 (can be supplied without this fixture on special request).
Every Tripod is provided with Tripod Bag Ref. No. PN 904.
