Anchorages

Anchorages

KARAM offers a range of Webbing & Wire Rope Sling Anchorages and Metallic Anchors.

Protection anchorages

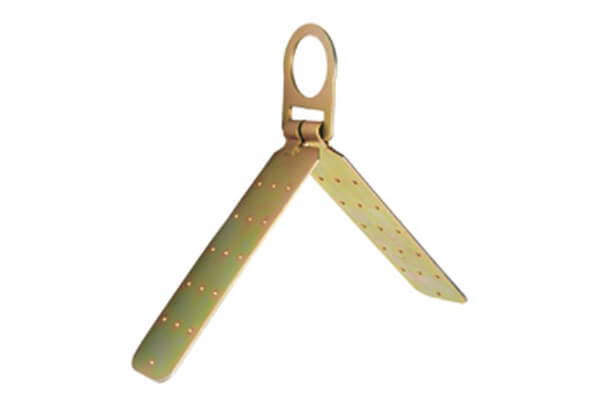

Steel Anchorage

  • Material: Galvanized Steel with Stamped D-Ring.
  • Minimum Breaking Strength: 5000 lbs/ 22.5 kN.
  • Finish: Powder Coated or Zinc Plated.
  • Net Weight: 1070.5 gms.
  • Conforms to ANSI Z 359.12:2009.


Protection anchorages

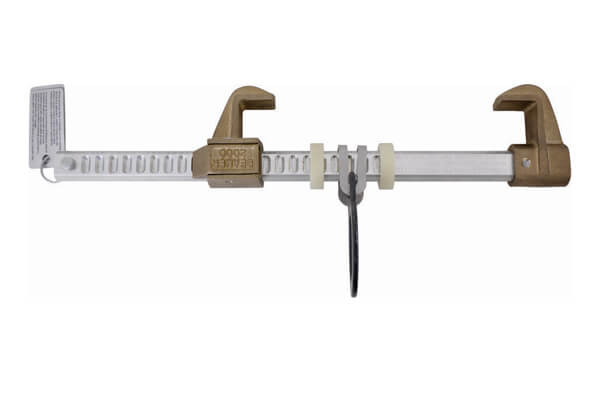

Beam Anchor

  • Material: Aluminium& Brass.
  • Net Weight: 1550gm ±10gm.
  • Conforms: EN 795 : 1996 Class B.


Protection anchorages

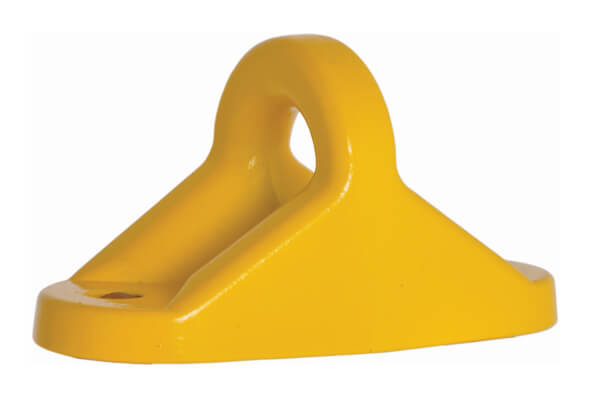

Aluminium Point Anchorage

  • Material: Aluminium Alloy.
  • Finish: Powder Coated.
  • Net Weight: 308.0 gms.
  • Conforms: EN 795 : 1996 + A1 : 2000 Class A.



Protection anchorages

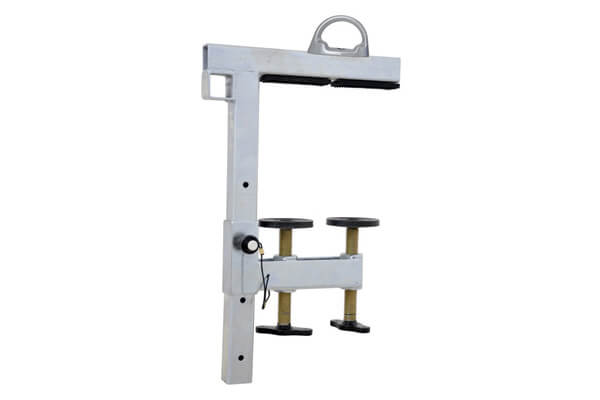

Parapet Anchor

  • Material: High strength steel galvanized to provide corrosion protection.
  • Net Weight: 8.575 kg ±100 gms.
  • Conforms: EN 795 : 1996 Class B.



Protection anchorages

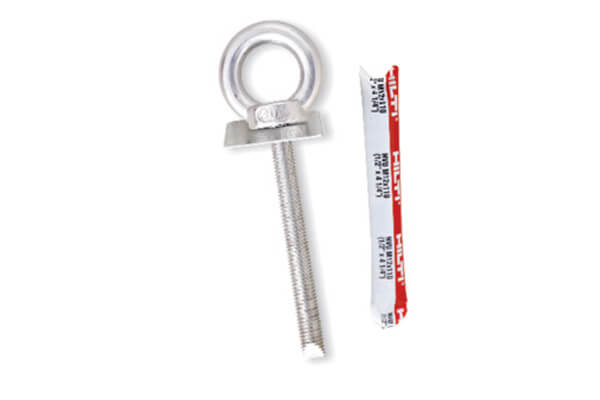

Stainless Steel Pint Anchor

  • Material: Stainless Steel.
  • Net Weight: 300 gm ± 10 gms.
  • Conforms: EN 795 : 1996 + A1 : 2000 Class A.



Protection anchorages

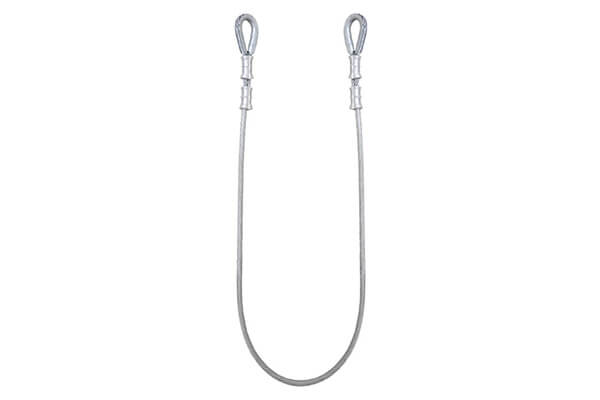

Anchorage Steel Wire Rope Sling

  • Made of PVC coated 8.0mm G. I. Wire Rope.
  • Available Length : 1.0mtr., 1.5mtr., 1.8mtr. & 2.0mtr or as requested.
  • Having Steel thimbles at both sides.
  • Strength : Min 15 kN for 3 minutes.
  • Conforms to EN 795:1996.



Protection anchorages

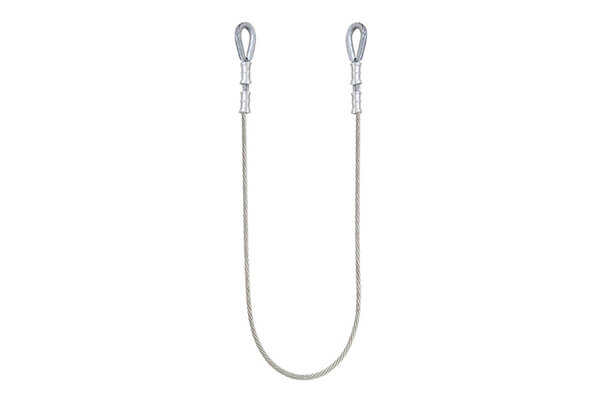

Anchorage S.S Wire Rope Sling

  • Made of 8.0mm S. S. Wire Rope.
  • Available Length : 1.0mtr., 1.5mtr., 1.8mtr. & 2.0mtr or as requested.
  • Having Steel thimbles at both sides.
  • Strength : Min 15 kN for 3 minutes.
  • Conforms to EN 795:1996.


Protection anchorages

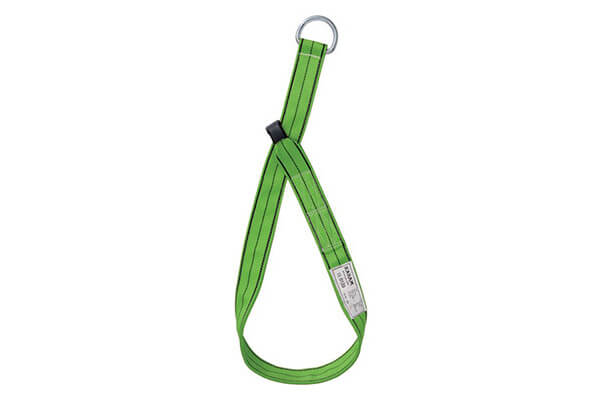

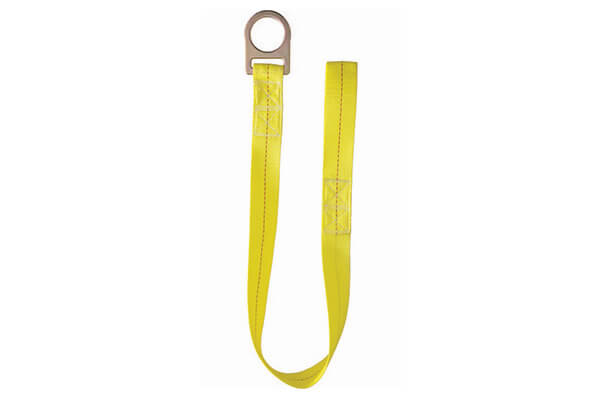

Anchorage Webbing Sling

  • Made up of 44mm wide Polyester Webbing.
  • Length : 1.2m or as requested.
  • Having a D-Ring at one end and textile loop at the other end.
  • Strength : Min 15 kN for 3 minutes.
  • Conforms to EN 795:1996.


Protection anchorages

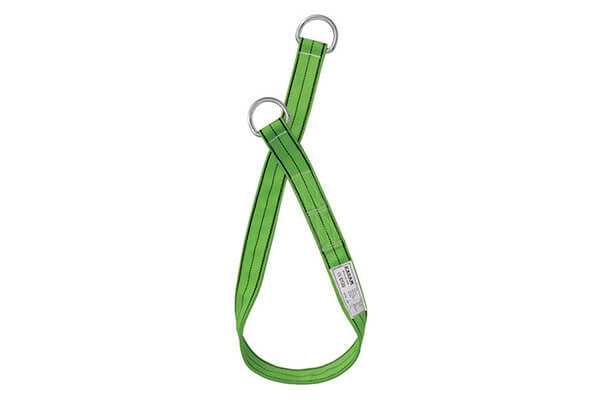

Anchorage Webbing Sling

  • Made up of 44mm wide Polyester Webbing.
  • Length : 1.0m, 1.5m, 2.0m, or as requested.
  • Having a D-Ring on both the ends.
  • Strength : Min 15 kN for 3 minutes.
  • Conforms to EN 795:1996.


Protection anchorages

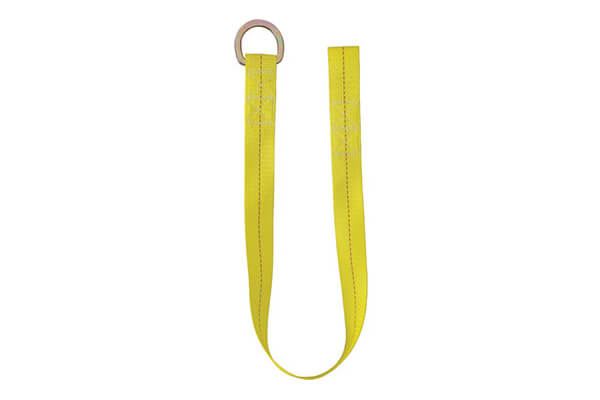

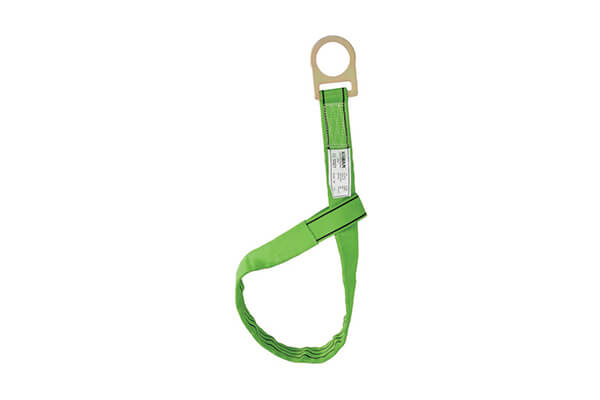

Concrete Anchor Strap

  • Made up of 44mm wide Polyester Webbing.
  • Length : 1.07m , or as requested.
  • Having a D-Ring at one end and textile loop at the other end. Also provided with a polyester covering on the load-bearing webbing.
  • Strength: Min 15 kN for 3 minutes.
  • Conforms to EN 795: 1996.


Protection anchorages

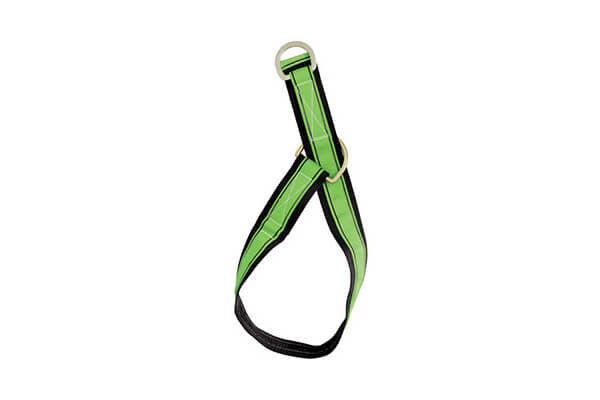

Concrete Anchor Strap

  • Made up of 44mm wide Polyester Webbing stitched with 70mm webbing on the back for extra protection.
  • Length : 1.0m, 1.5m, 2.0 m, or as requested.
  • Having a small D-ring on one end & a bigger D-ring on the other.
  • Strength : Min 15 kN for 3 minutes.
  • Conforms to EN 795:1996.


Protection anchorages

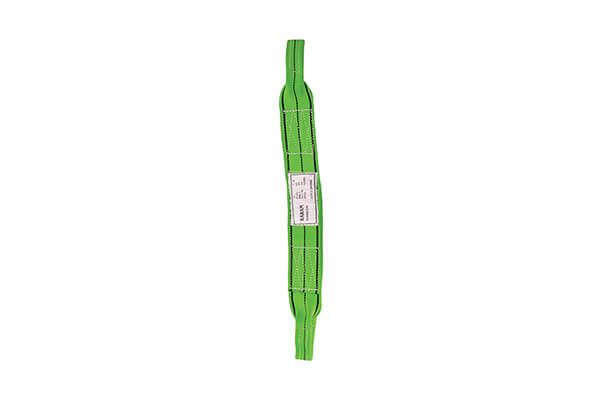

Anchorage Webbing Sling

  • Made up of 25mm wide Polyester Webbing.
  • Length : 0.6m, 1.0m, 1.5m or as requested.
  • Strength : Min 10 kN for 3 minutes.
  • Conforms to EN 795:1996.
Protection anchorages

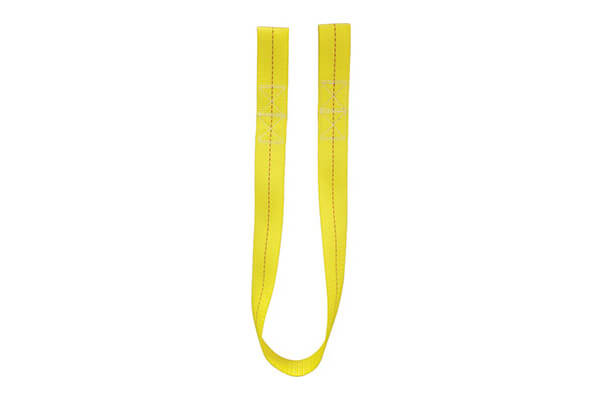

Anchorage Webbing Sling

  • Made up of 50mm wide Polyester Webbing.
  • Length : 3ft, 4ft or special length available on request.
  • Strength : Min 15 kN for 3 minutes.
  • Conforms to EN 795:1996.


Protection anchorages

Anchorage Webbing Sling

  • Made up of 50mm wide Polyester Webbing.
  • Length : 3ft, 4ft or special length available on request.
  • Strength : Min 15 kN for 3 minutes.
  • Conforms to EN 795:1996.


Protection anchorages

Anchorage Webbing Sling

  • Made up of 50mm wide Polyester Webbing.
  • Length : 3ft, 4ft, 6ft or special length available on request.
  • Strength : Min 15 kN for 3 minutes.
  • Conforms to EN 795:1996.


Protection anchorages

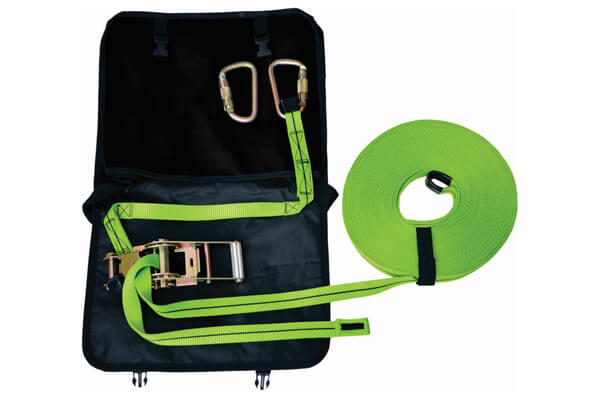

Temporary Horizantal Line

KARAM introduces the HORIZON range of Horizontal Anchorage Lifeline to provide a suitable and safe anchorage extending horizontally along a length.
