KARAM provides a range of CE as well as ANSI marked Hooks and Connectors made from Alloy Steel and a Light weight range made from a special grade of Aluminum Alloy.

The KARAM range of Hooks & Connectors come with the following special features:

  • Come with a double locking system which can be opened by minimum 2 deliberate consecutive actions
  • A range of double & triple locking connectors
  • Come with a minimum breaking strength of 23kN
  • Tested for both Gate Function & Gate Resistance
  • Provided with a unique Zinc Electroplating that gives an extended corrosion resistant property to them

As per the ANSI Z359.1 the important features in the Gate Hook strength of KARAM Snap Hooks & Karabiners are as follows:

  • Gate Face, Side of Gate & Minor axis of Snap Hooks & Karabiners (except those with a captive pin) withstands a load of more than 3600 pounds.
  • Tensile load withstands 5000 pounds
Hooks Connectors

Quarter Turn-Locking Steel Karabiner - PN 111

  • Material: Alloy Steel.
  • Gate Opening: 16 mm.
  • Minimum Breaking Strength: 25 kN.
  • Tested as per EN 362:2004.
  • Finish Available: Silver/ Golden Yellow Galvanized.
  • Net Weight: 160.5 gms.
  • Conformity: EN 362:2004 Class B & Class M.


Hooks Connectors

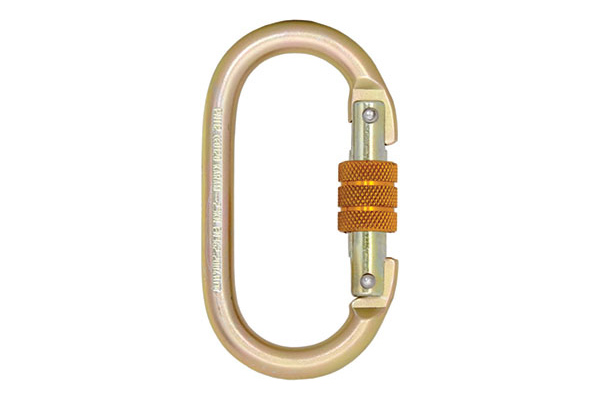

Steel Screw-Locking Karabiner - PN 112

  • Material: Alloy Steel.
  • Gate Opening: 17 mm.
  • Minimum Breaking Strength: 25 kN.
  • Finish Available: Silver/ Golden Yellow Galvanized.
  • Net Weight: 160.5 gms.
  • Conformity: EN 362:2004 Class B & Class M.


Hooks Connectors

Steel Quarter Turn-Locking Karabiner - PN 113

  • Material: Alloy Steel.
  • Gate Opening: 23 mm.
  • Minimum Breaking Strength: 25 kN.
  • Finish Available: Silver/ Golden Yellow Galvanized.
  • Net Weight: 236.0 gms.
  • Conformity: EN 362:2004 Class B.



Hooks Connectors


Steel Triple-Action Locking Karabiner - PN 114

  • Material: Alloy Steel.
  • Gate Opening: 23 mm.
  • Minimum Breaking Strength: 25 kN.
  • Finish Available: Silver/ Golden Yellow Galvanized. Shot-blasted on request.
  • Net Weight: 233.4 gms.
  • Conformity: EN 362:2004 Class B.



Hooks Connectors

Steel Quarter Turn-Locking Karabiner - PN 115

  • Material: Alloy Steel.
  • Gate Opening: 23 mm.
  • Minimum Breaking Strength: 25 kN.
  • Finish Available: Silver/ Golden Yellow Galvanized.
  • Net Weight: 210.0 gms.
  • Conformity: EN 362:2004 Class B.



Hooks Connectors

Steel Tower Hook - PN 134

  • Material: Alloy Steel.
  • Gate Opening: 50 mm.
  • Always comes fitted with a Captive Pin.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Silver or Golden Yellow Galvanized. Shot-blasted on request.
  • Net Weight: 725.0 gms.
  • Conformity: EN 362:2004 Class T.



Hooks Connectors

Steel Tower Hook - PN 135

  • Material: Alloy Steel.
  • Gate Opening: 55 mm.
  • Always comes fitted with a Captive Pin.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Silver or Golden Yellow Galvanized. Shot-blasted on request.
  • Net Weight: 745 gms.
  • Conformity: EN 362:2004 Class T.


Hooks Connectors

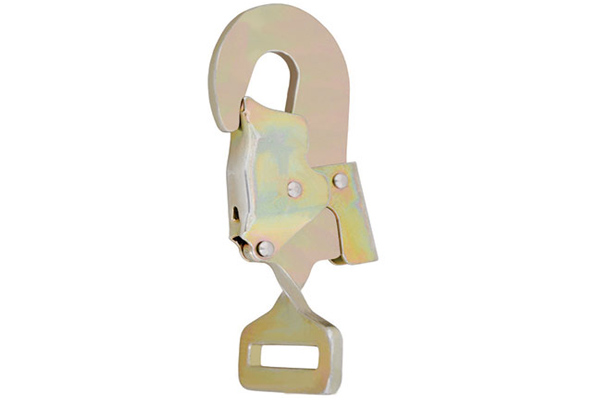

Pole Strap Snap Hook - PN 150

  • Material: Alloy Steel.
  • Gate Opening: 17 mm.
  • Minimum Breaking Strength: 25 kN.
  • Finish Available: Silver/ Golden Yellow Galvanized. Shot blasted on request.
  • Net Weight: 259.0 gms.
  • Conformity: EN 362:2004 Class T.
  • Process : Stamped.


Hooks Connectors

Steel Snap Hook - PN 121

  • This harness has been specially designed for workers doing Welding Work at heights.
  • The Webbing of the Harness can withstand flame of upto 700oF / 371oC without any damage or harm.
  • The Harness is provided with adjustable shoulder & thigh straps, and comes with two front attachment textile loops in addition to the Dorsal D-ring for Fall Arrest.
  • This harness conforms to EN 361. The Webbing is also tested in accordance with ISO 15025 : 2005 and assessed in accordance with EN ISO 11612 : 2008.


Hooks Connectors

Steel Swivel Snap Hook - PN 122

  • Material/ Composition: Alloy Steel.
  • Gate Opening: 11.5 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Silver/ Golden Yellow Galvanized. Shot blasted on request.
  • Net Weight: 334.9 gms.
  • Conformity: EN 362: 2004 Class T.
  • Process : Forged.


Hooks Connectors

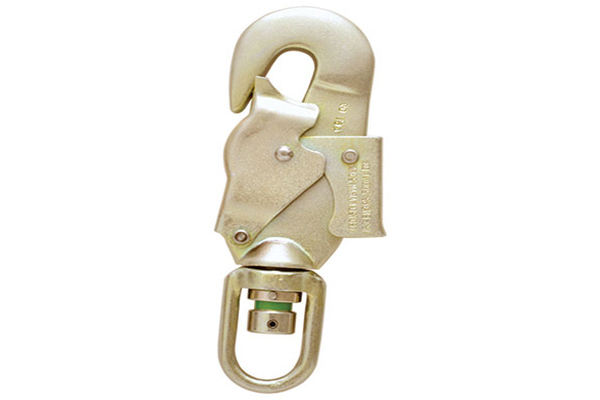

Steel Swivel Snap Hook With Load Indicator - PN 123

  • Material: Alloy Steel.
  • Gate Opening: 11.5 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Silver/ Golden Yellow Galvanized. Shot blasted on request.
  • Net Weight: 345.5 gms.
  • Conformity: EN 362:2004 Class T.
  • The Load Indicator (shown in green colour) activates at a load of 270 to 320 kgf.
  • Process : Forged


Hooks Connectors

Steel Snap Hook - PN 124

  • Material: Alloy Steel.
  • Gate Opening: 21 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Silver/ Golden Yellow Galvanized. Shot blasted on request.
  • Net Weight: 274.0 gms.
  • Conformity: EN 362:2004 Class T.
  • Process : Stamped


Hooks Connectors

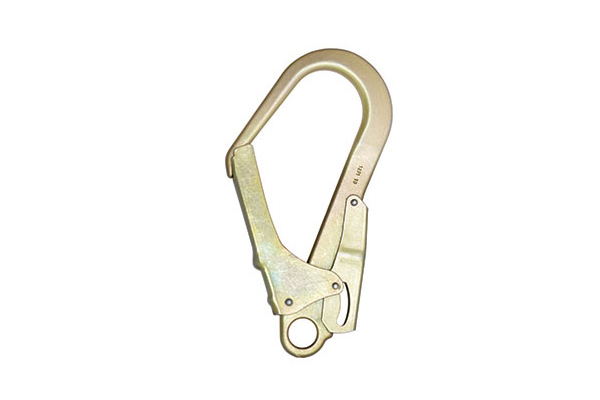

Steel Scaffold Hook - PN 131

  • Material: Alloy Steel.
  • Gate Opening: 55 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Nickel Plated/ Silver or Golden Yellow Galvanized. Shot blasted on request.
  • Net Weight: 473.0 gms.
  • Conformity: EN 362:2004 Class T.
  • Process : Forged.


Hooks Connectors

Steel Tower Hook - PN 132

  • Material: Alloy Steel.
  • Gate Opening: 80 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available : Silver or Golden Yellow Galvanized. Shot blasted on request.
  • Net Weight: 850.5 gms.
  • Conformity: EN 362:2004 Class T


Hooks Connectors

Steel Scaffold Hook - PN 133

  • Material: Alloy Steel.
  • Gate Opening: 60 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Silver or Golden Yellow Galvanized. Shot-blasted on request.
  • Net Weight: 490.0 gms.
  • Conformity: EN 362:2004 Class T
  • Process: Stamped.


Hooks Connectors

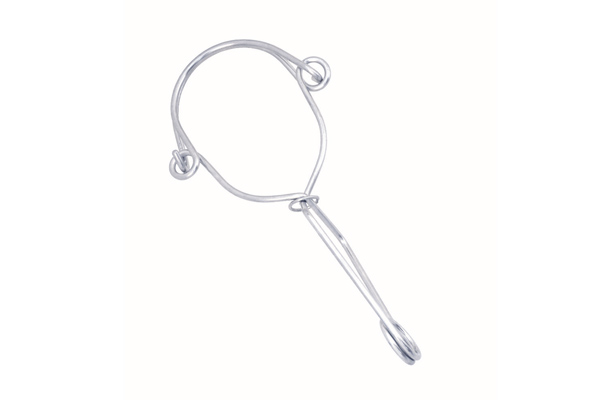

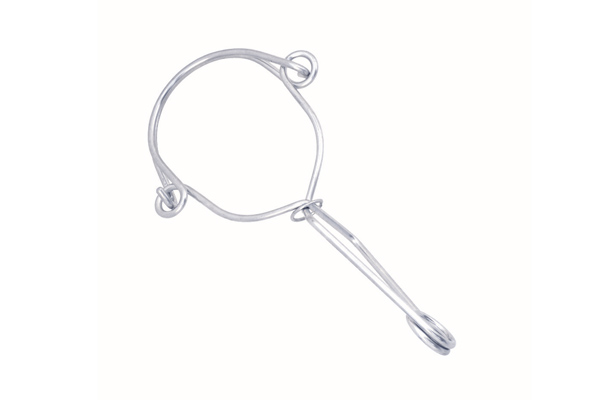

Anchorage Hook - PN 141

  • Material: Stainless Steel.
  • Opening: 140 mm.
  • Minimum Breaking Strength: 23 kN.
  • Net Weight: 362.3 gms.
  • Conformity: EN 362:2004 Class A.


Hooks Connectors

Anchorage Hook - PN 142

  • Material: Stainless Steel.
  • Opening: 110 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Polished Stainless Steel.
  • Net Weight: 314.9 gms.
  • Conformity: EN 362:2004 Class A.


Hooks Connectors

Anchorage Hook - PN 143

  • Material: Stainless Steel.
  • Opening: 75 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Polished Stainless Steel.
  • Net Weight: 306.3 gms.
  • Conformity: EN 362:2004 Class A.


Hooks Connectors

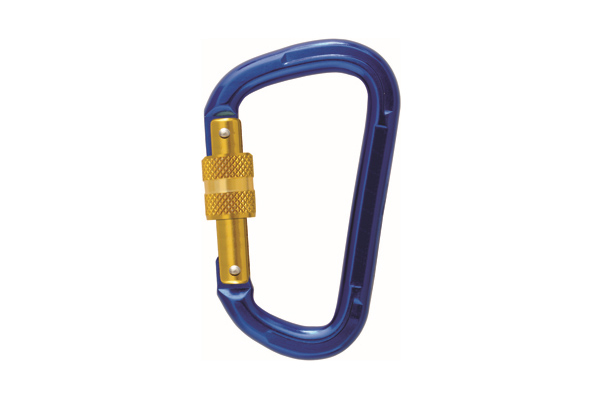

Aluminium Screw-Locking Karabiner - PN 116

  • Material: Aluminium Alloy.
  • Gate Opening: 22.5 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Natural Silver/ Coloured.
  • Net Weight: 74.6 gms.
  • Conformity: EN 362:2004 Class B.


Hooks Connectors

Aluminium Screw-Locking Karabiner - PN 116 F

  • Material: Aluminium Alloy.
  • Gate Opening: 22.5 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Natural Silver/ Coloured.
  • Net Weight: 74.6 gms.
  • Conformity: EN 362:2004 Class B.


Hooks Connectors

Aluminium Quarter Turn-Locking Karabiner - PN 117 F

  • Material: Aluminium Alloy.
  • Gate Opening: 22 mm.
  • Minimum Breaking Strength: 23 kN.Minimum Breaking Strength: 23 kN.
  • Finish Available: Natural Silver/ Coloured.
  • Net Weight: 84.0 gms.
  • Conformity: EN 362:2004 Class B.


Hooks Connectors

Aluminium Triple Action-Locking Karabiner - PN 118

  • Material: Aluminium Alloy.
  • Gate Opening: 22 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Natural Silver/ Coloured.
  • Net Weight: 79.0 gms.
  • Conformity: EN 362:2004 Class B.


Hooks Connectors

Aluminium Triple Action-Locking Karabiner - PN 118 F

  • Material: Aluminium Alloy.
  • Gate Opening: 22 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Natural Silver/ Coloured.
  • Net Weight: 79.0 gms.
  • Conformity: EN 362:2004 Class B.


Hooks Connectors

Aluminium Screw-Locking Snap Hook - PN 126


  • Material/Composition: Aluminium Alloy.
  • Gate Opening: 24 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Natural Silver/ Coloured.
  • Net Weight: 80.0 gms.
  • Conformity: EN 362:2004 Class B.


Hooks Connectors

Aluminium Quarter Turn-Locking Snap Hook - PN 127

  • Material/Composition: Aluminium Alloy.
  • Gate Opening: 22.5 mm.
  • Minimum Breaking Strength: 23kN.
  • Finish Available: Natural Silver/ Coloured.
  • Net Weight: 87.4 gms.
  • Conformity: EN 362:2004 Class B.


Hooks Connectors

Triple Action Locking Aluminium Snap Hook - PN 128

  • Material/Composition: Aluminium Alloy.
  • Gate Opening: 22.5 mm.
  • Minimum Breaking Strength: 23kN.
  • Finish Available: Natural silver/ Coloured.
  • Net Weight: 87.0 gms.
  • Conformity: EN 362:2004 Class B


Hooks Connectors

Aluminium Snap Hook - PN 129

  • Material/Composition: Aluminium Alloy.
  • Gate Opening: 18.5 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Natural Silver/ Coloured.
  • Net Weight: 160.0 gms.
  • Conformity: EN 362:2004 Class T.
  • Process: Stamped.


Hooks Connectors

Aluminium Rebar Hook - PN 136

  • Material/ Composition: Aluminium Alloy.
  • Gate Opening: 60 mm.
  • Minimum Breaking Strength: 23 kN.
  • Finish Available: Natural Silver / Coloured.
  • Net Weight: 445.0 gms.
  • Conformity: EN 362:2004 Class T.
